v4.1 3x6 MX Corne Keyboard Case

v4.1 3x6 MX Corne Keyboard Case

$34.99 USD
$34.99 USD
Sale Sold out
Color: Black
Tenting
Switch Plates

This is a high quality 3d printed case for the 3x6 MX Corne v4.1 keyboard with 3d printed switch plates. The case can optionally be tented. The tented version has 4 holes with brass threaded inserts on each side sized for m4 socket screws included in the kit along with all other necessary hardware. This version also includes 3d printed caps designed specifically for these screws. Each cap has two parts that snap onto the socket screw head.

You can choose between two different types of 3d printed switch plates. They can either be 23 key switch plates for 23 keys on each side of your keyboard or instead be 21 key switch plates 21 keys on each side and acrylic display covers to protect optional OLED screens (acrylic display covers included).

The case has a cutout on the side for a trrs jack and a cutout on the front for connecting a cable to your microcontroller via usb.

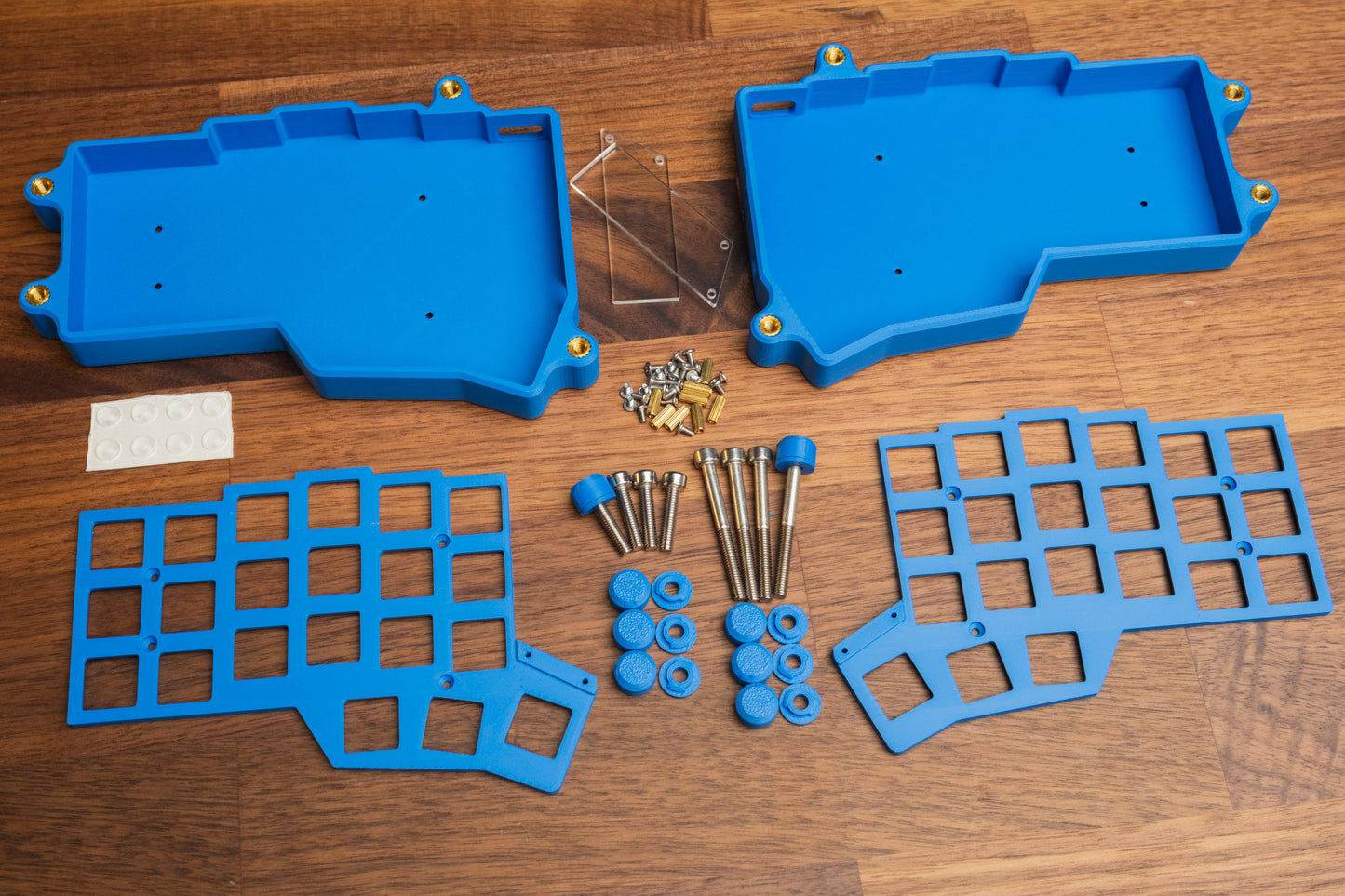

What's Included?

Included With All Options:

  • 3D Printed Case
  • 2 3D Printed Switch Plates (23 or 21 key)
  • 18 m2 x 4mm screws (2 extra)
  • 8 m2 x 8mm standoffs (for switch plates)
  • 8 rubber feet

21 Key Switch Plate Option Also Includes:

  • 4 m2 x 4mm screws
  • 2 Acrylic Display Covers

Tented Case Also Includes:

  • 4 m4x40mm tenting screws
  • 4 m4x18mm tenting screws
  • 8 3d printed socket caps to attach rubber feet to tenting screws (same color as case)
  • 8 m4 heat-set insert threads (already installed)

Disclaimer

These are 3d printed parts so small imperfections are to be expected. That said, these cases are printed with a high quality printer with matte filament.

View full details

Customer Reviews

Based on 4 reviews
25%
(1)
50%
(2)
25%
(1)
0%
(0)
0%
(0)
P
Poobah
pretty good

i wish there was more choices in keycaps cause the dsa just don't work for me, but that is not the worse thing all in all the keyboard came well packed and nothing was damaged, just a little bit of messed up edges on the keycaps. the best part is the pcb and really the only part that matters, but the case i fell like could have been better. Also sadly couldn't get a tenting case, but kinda happy that i didn't because i would rather go somewhere else for a case.

A
Anonymous
This is not my first corne but it is my first V4

Was looking to try the v4 so I got both the tented and untented case kits. Both were well made with the colors matching the pictures on the web very well. There was a small bit of wobble when the tenting screws were near the max height but I prefer a low or no tenting so not an issue for me. Together with the v4 pcb kit which came presoldered and flashed, this was the easiest corne I have ever assembled. Cost was reasonable, considering ease of build and quick delivery.

A
Anonymous

Great case. If you get the tented case just be aware there’s a small amount of wobble due to the tenting screws being loose enough to be hand adjusted. It doesn’t affect typing and since it’s for the sake of easy adjustability it doesn’t bother me (hence the high rating), but if you’re someone that would be bothered by even a little wobble then this might not be the case for you.

Thank you so much for your review! Yes, as you mention, the minimal amount of wobble is because the case is designed in such a way that the screws can be easily adjusted by hand, in a previous version you would have had to use something like an allen key making it more difficult to modify the tenting angle. Really appreciate your feedback and will be looking for ways to continue improving the design.

J
Jesus Cienfuegos
Good case

Nice compact case with adjustable tenting. Only thing is the screws are a little loose and case wobbles just a little bit not too much to disrupt typing.

Thanks so much for your review! The case is designed with brass heat set inserts for the tenting screw threads so that you can easily adjust the tenting angle by hand. Because of this, the screws can have the minimal amount of wobble you've described without really having an effect on the typing experience. In a previous version these threads were not used so you had to use an allen key to adjust the angle as they were too difficult to adjust by hand. I will continue to look for ways to improve the design further. Really appreciate your feedback!
